Description :
HPCPL Hydraulic cylinders with tie rod construction are built for specific applications and are suitable upto 160 bar pressure.
Specifications :
- Max. pressure - 160 bar.
- Max reciprocating speed - 12 m/min.
- Break-away pressure - 3 to 5 bar.
- Non-Cushion.
| |

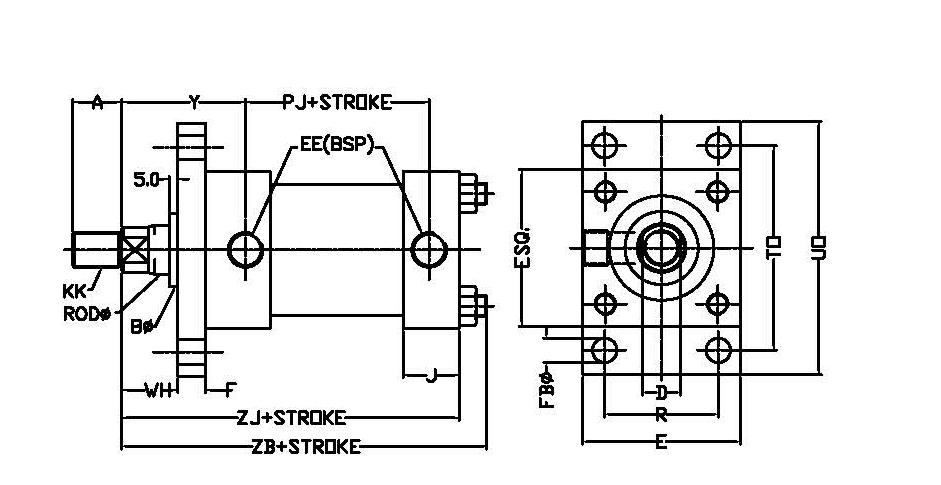

Front Flange Mounting (MF1)  |
|

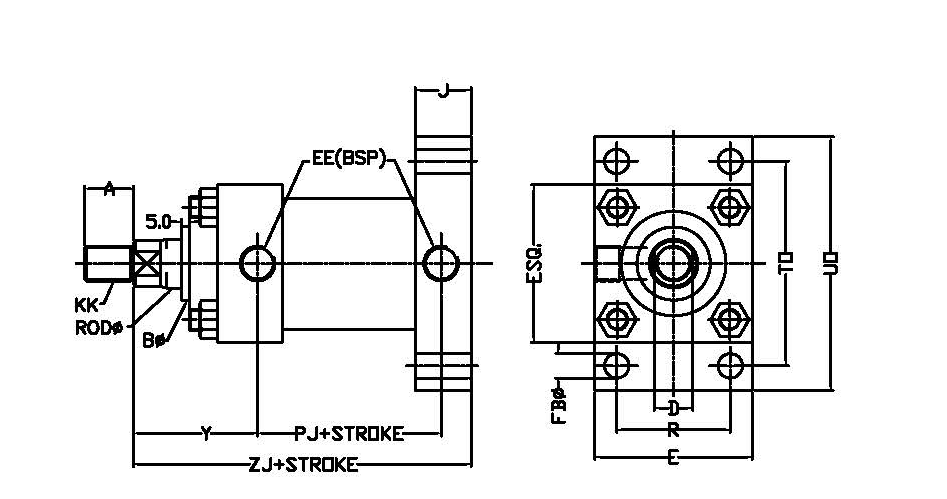

Rear Flange Mounting (ME6)  |
|

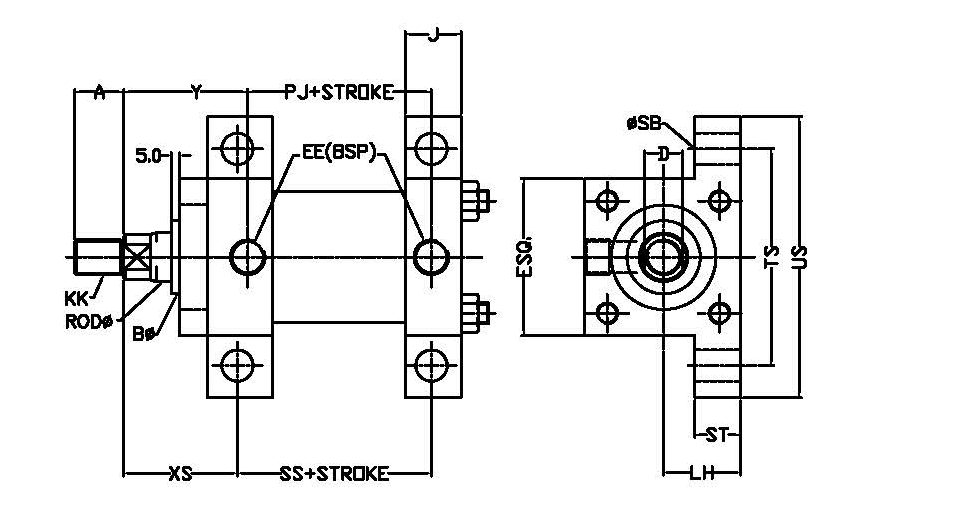

Side Lugs Mounting (MS2)  |
|
|
| BORE |
ROD |
A |
B |
D |
E |
F |
R |
J |
Y |
EE |
KK |
PJ |
WH |
FB |
ZB |
ZJ |
TO |
UO |
TS |
US |
XS |
SS |
SB |
LH |
ST |
| 40 |
18 |
18 |
30 |
15 |
63 |
10 |
41 |
30 |
62 |
3/8" |
M14X1.5 |
73 |
25 |
11 |
166 |
153 |
87 |
110 |
83 |
103 |
45 |
98 |
11 |
31 |
12.5 |
| 50 |
22 |
22 |
34 |
18 |
75 |
16 |
52 |
32 |
67 |
1/2" |
M16X1.5 |
74 |
25 |
14 |
176 |
159 |
105 |
130 |
102 |
127 |
54 |
92 |
14 |
37 |
19 |
| 63 |
28 |
28 |
42 |
22 |
90 |
16 |
65 |
32 |
71 |
1/2" |
M20X1.5 |
80 |
32 |
14 |
185 |
168 |
117 |
145 |
124 |
161 |
65 |
86 |
18 |
44 |
26 |
| 80 |
36 |
36 |
50 |
30 |
115 |
20 |
83 |
38 |
77 |
3/4" |
M27X2 |
93 |
31 |
18 |
212 |
190 |
149 |
180 |
149 |
186 |
68 |
105 |
18 |
57 |
26 |
| 100 |
45 |
45 |
60 |
36 |
130 |
22 |
97 |
38 |
82 |
3/4" |
M33X2 |
101 |
35 |
18 |
225 |
203 |
162 |
200 |
172 |
216 |
79 |
102 |
26 |
63 |
32 |
|
| All dimensions are in mm, Overall dimension tolerance ± 0.5 mm. |
HOW TO ORDER :
- Cylinder Bore.
- Stroke - (Stroke available incrementing in steps of 50)
- Mounting style.
- Non-Cushion.
| | |
